Product info
PRODUCT DATA
Dimensions L x W x H (w/o. roof) 2,925 x 720 – 900 x 2,140 mm
Engine 4-stroke petrol engine
Power 420 cm³ / 11.5 PS / 8.5 kW
Fuel type Petrol / 6L
Hydraulic system Pump 2 x 13L/min / Tank 13.5 L

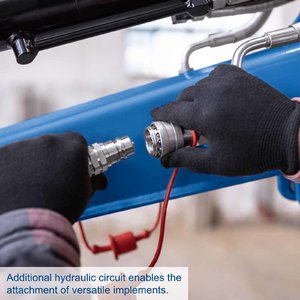

Additional control circuit: Yes

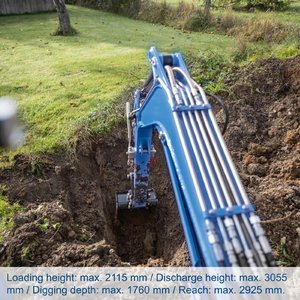

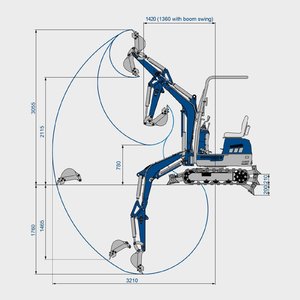

Maximum digging depth 1760 mm
Maximum reach 2925 mm
Max. ejection height 3055 mm
Maximum loading height 2115 mm

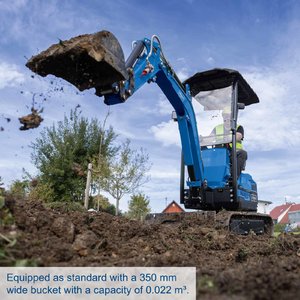

Bucket width 350 mm
Bucket volume 0.022 m³
Bucket digging force 13.2 kN (1346 kg)
Arm digging force 5.7 kN (581 kg)
Track width 720 - 900 mm
Chain width 180 mm

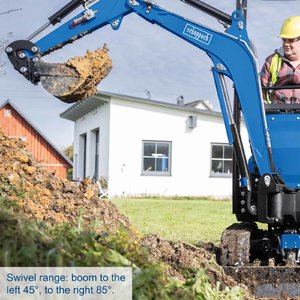

Swing range of boom left 45°, right 85°
Driving speed 1.8 km/h
Rotation range/speed 360° / 8.8 rpm
Climbing ability 15°
Ground pressure 29 kPa (0.295 kg/cm2 )
E-start: Yes
LED: Yes
CO2 emissions 734.5 g/kWh
