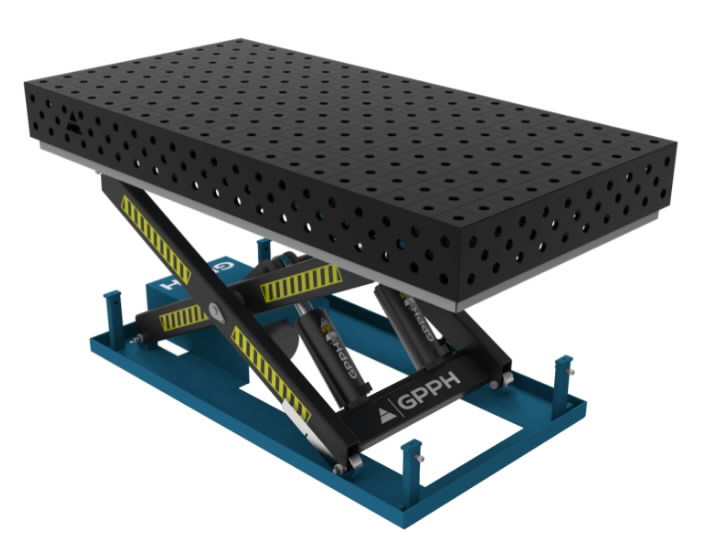

Welding table Eco 1500x1480mm, with hydraulic lifting system

GPPH welding tables with hydraulic lifting system are professional tables with automatic adjustment of table top height. With it you will quickly and easily reach the ideal working height of the table top ensuring high comfort of work. Welding tables with hydraulic lifting system are equipped with: - overload valve preventing lifting too heavy loads, - safety valve stopping the lowering in the case of rupture of the hydraulic lines, - limit switches protecting against crushing or personal injury. Table top made of S355J2+N steel. The table has a nitrided surface. Due to this, it has much better splash resistance, rust resistance, deep scratch resistance. Also the whole table is much stronger. Holes diameter 28 mm in the grid of 100x100 mm. Technical parameters: - hydraulic lifting system supply voltage 400 V, - revolutions 1400 rpm, - motor power 2,2 kW, - protection class IP54, - insulation class F. Table dimensions 1500x1480 mm, max. load capacity 1500 kg, lifting time with load 20-25 s, max. table height 1450 mm, min. table height 480 mm, dimensions of the base of the lifting 1220x785 mm. Table weight: approx. 559 kg.
