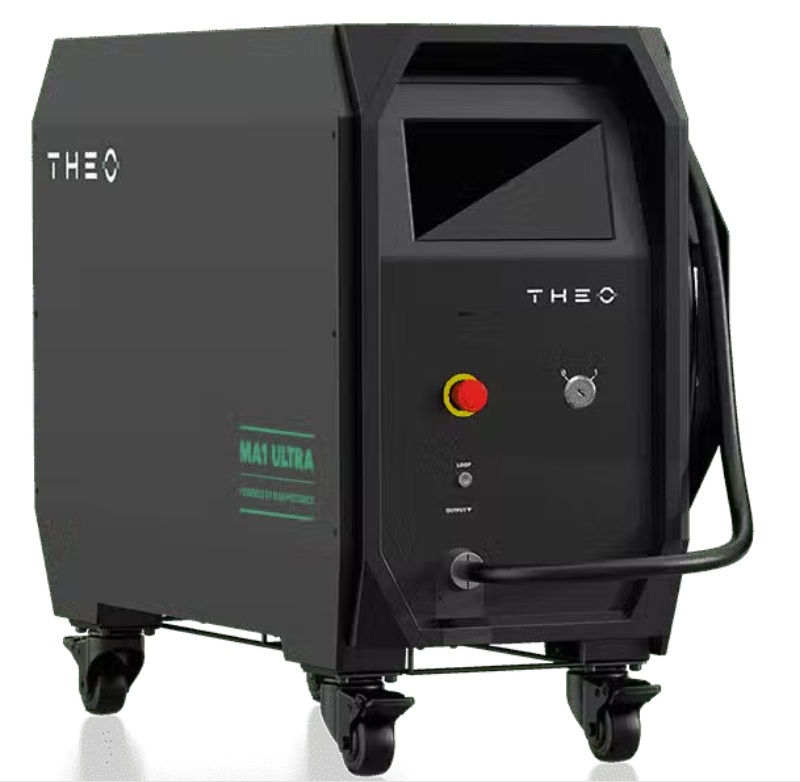

Laser welding machine Maxphotonics Theo MA1-Ultra (up to 8,5mm)

Theo MA1-Ultra is a compact, easy-to-use, and highly efficient handheld laser welding system that significantly improves welding speed, greatly reduces training time, and offers superior return on invest compared to traditional welding methods. The fiberlaser system is air-cooled and no external chiller is required. Industry’s Lightest Compact Handheld Laser Welding System. - Truly Portable Design: 39kg - Certified Safety and Quality (CE/FDA/ETL/ISO/EN) - PL-d: ISO 13849-1 - Exceptional Efficiency: Up to 4x Faster than TIG - Easy to Learn & Operate: Train operators in >1 hour - Industry’s Lightest Welding Torch - Included Wire Feeder & Wobble Welding - Outstanding Welding Results - Energy Savings: Up to 80% Less Electricity - Up to 10 years lifetime of laser source - 100% developed by Maxphotonics – 80% manufactured in-house. Up to 8,5mm material thickness (one sided limit welding seam): - Stainless Steel up to 8.5 mm - Carbon Steel up to 8.5 mm - Aluminium up to 6.5 mm - Galvanised Steel up to 8.5 mm Product specifications: Input Power 230Vac / 50Hz / 32A Operating Ambient Temperature (°C) 0 - 40 °C Operating Ambient Humidity 10 - 85 % Storage Temperature (°C) -10 - 60 °C Power Regulation Range 10 - 100 % Laser Cooling Method Phase change heat dissipation (air) Tip Cooling Method Nitrogen / Argon Operation Mode CW / Modulated Polarisation Random Central Wavelength 1080 nm Fibre Width 20μm Wobble Width 0 - 4 mm Wobble Frequencey 0 - 280Hz Continuous Light Output Time (S) Light 120S, Stop 6S Weight 39 kg Dimensions 667 x 276 x 542 mm Length Of Optical Fibre Armoured Cable 5.6m Valokuvat ja videot ovat havainnollistavia.
