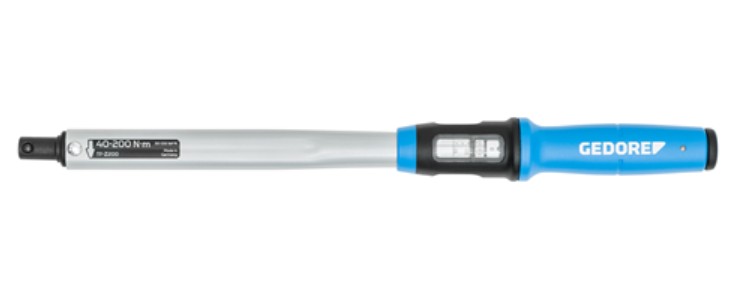

Torque wrench TORCOFIX Z16 40-200Nm

Product description Use: Controlled screw tightening in the range of 40 - 200 Nm / 30 -150 lbf·ft Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 % Incl. traceable test certificate (DIN EN ISO 6789-2:2017) For controlled right- and left-hand tightening (change tool for changing direction) Pin Drive Ø 16 mm Working calibration pitch: 32 mm (Ø 16 mm) Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts New ergonomic handle, shaped according to the natural grip position of the hand Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers Scale line positioned directly above the scale prevents reading errors (parallax errors) Unit labeling integrated in the scale frame and also protected by viewing windows, The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached Incl. roll away protection, prevents rolling away when the tool is put down Dimensions and weights Total width [mm]: 44 mm Total height [mm]: 44 mm Total length [mm]: 476 mm Weight [kg]: 0,92 kg Scope of delivery Storage/Content: Plastic box Contents (Qty of pieces): 1 Technical characteristics Drive size [mm]: 16 mm Drive type/drive: Drive pin Tightening direction: Left and right Trigger mechanism: Short path triggering Receptacle width [mm]: 16 mm Torque (max.) [lbf·ft]: 150 lbf·ft Torque (max.) [Nm]: 200 Nm Torque (min.) [lbf·ft]: 30 lbf·ft Torque (min.) [Nm]: 40 Nm Range of application: Assembly Series assembly Production Maintenance and repair Lever length drive side [mm]: 32 mm Calibration length: 401,3 mm Material: Tubular steel construction vernier Nm: 1 Nm Precision +/-: +/- 3 % Test certificate: DIN EN ISO 6789-2:2017 Compliance: compliant Safety: Locking pin Graduation [lbf·ft]: 10 lbf·ft Scale division [Nm]: 10 Nm Depth gauge [metric]: 32,0 mm
