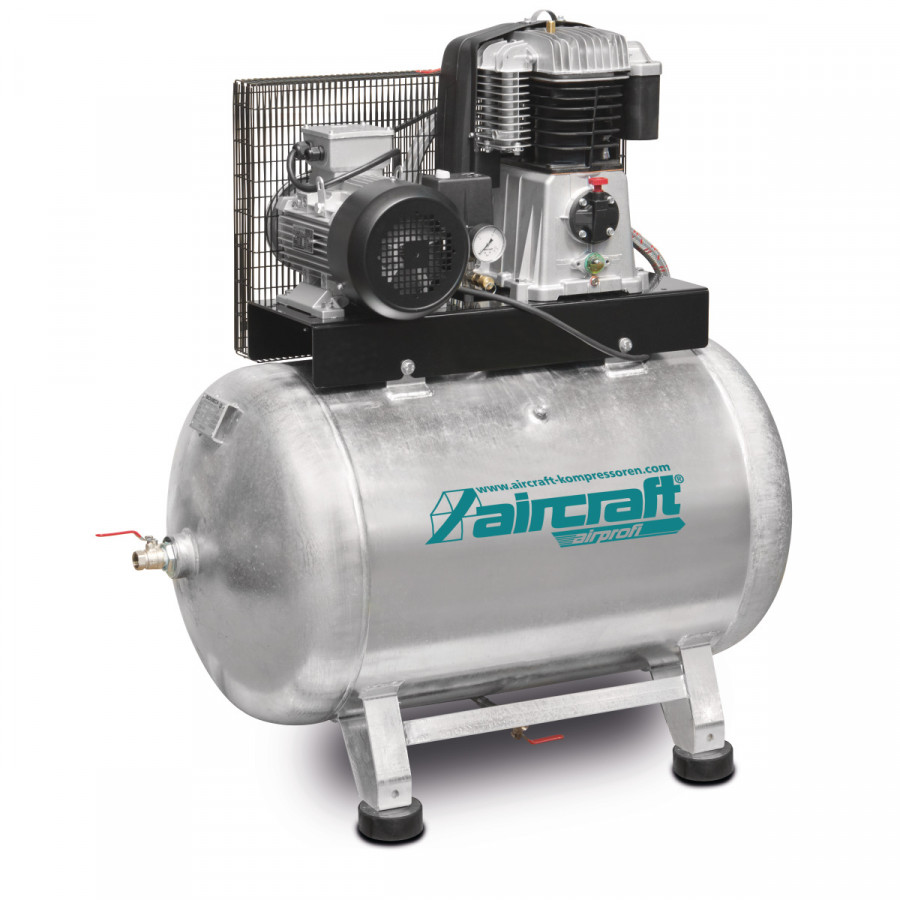

Tuotetiedot
Maximum pressure 15bar (Set to 13 bar cut-off pressure at the factory)
Suction capacity approx. 575l/min
Filling capacity approx. 460l/min at 6 bar working pressure
Pressure vessel capacity 270l
Motor power (input power) 4.8kW
Supply voltage 400V
Air outlet 3/4"
Sound pressure level Lp 83dB(A)
Net weight approx. 210kg
Equipment:
Pressure regulation Pressure regulator
Automatic pressure switch CONDOR
Drive transmission V-belt
Material compressed air line Flexible armored conduit with heat protection
Connector 400V CEE plug with phase inverter
Condensate drain 3/8" ball valve
Compressed air outlet Ball valve
Pressure vessel Hot-dip galvanized inside and out with fifteen-year warranty against rust-through
AD 2000 compliant Yes
Compressor base Swing elements
