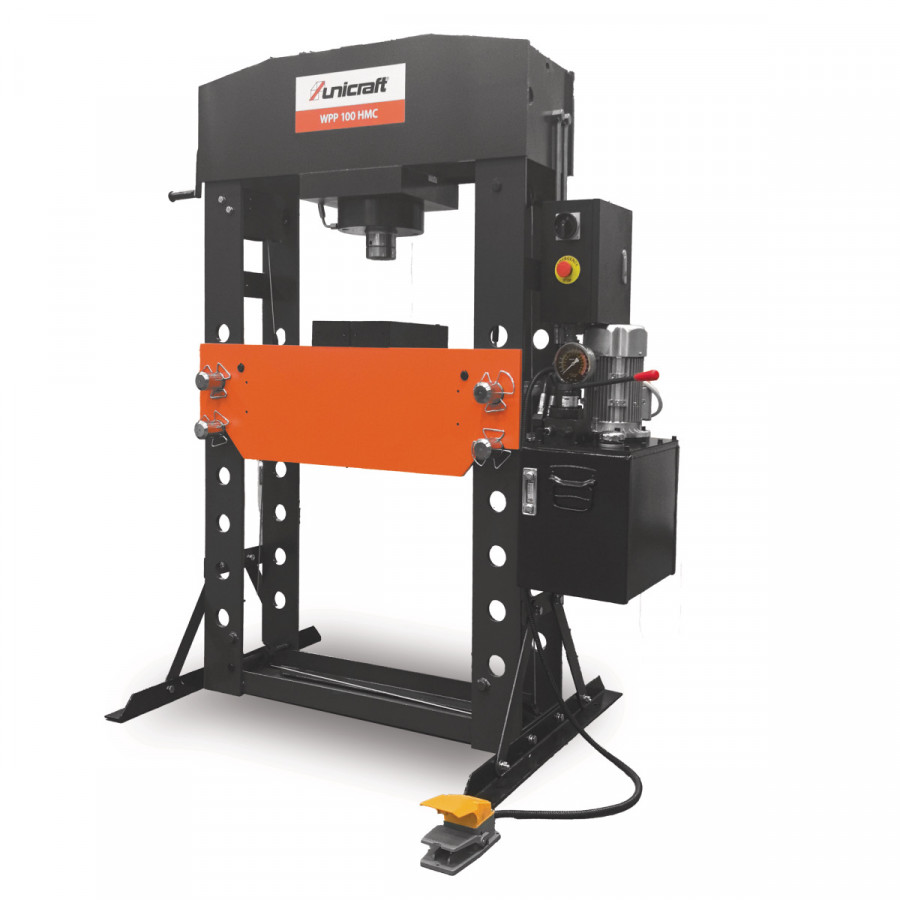

Electro-hydraulic press 100t WPP 100 HMC

Electro-hydraulic press with a pressing force of up to 100 t Sturdy welded construction Pressing pressure can be read via pressure gauge Faster pressing processes than standard hydraulic presses thanks to integrated electric motor Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more Pressure force 100t Piston stroke 300mm Piston travel 255mm Press speed 4.5mm/s Length (product) approx. 1199mm Width/depth (product) approx. 990mm Height (product) approx. 1865mm Net weight approx. 690kg Width/depth of machine feet 990mm Frame depth 268mm Hole spacing for table height adjustment 140mm Clear height max. 813mm Clear height min. 113mm Clear width 787mm Diameter piston rod 96mm Drive motor output 1,5kW Supply voltage 400V Mains frequency 50Hz Motor speed 1400min¯¹ Hydraulic oil tank capacity 24l
