Drilling-milling machine OPTImill MT 60, Optimum
Tuotenumero:3336090&OPTIMUM
Pyydä henkilökohtaista tarjousta
Tekniset tiedotDrilling/milling output
Max. size milling head 100 mm
Max. size shaft milling cutter 25 mm
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm
Electric Data
Supply voltage 400 V
Mains frequency 50 Hz
Electrical connections
Total rated value 5 kW

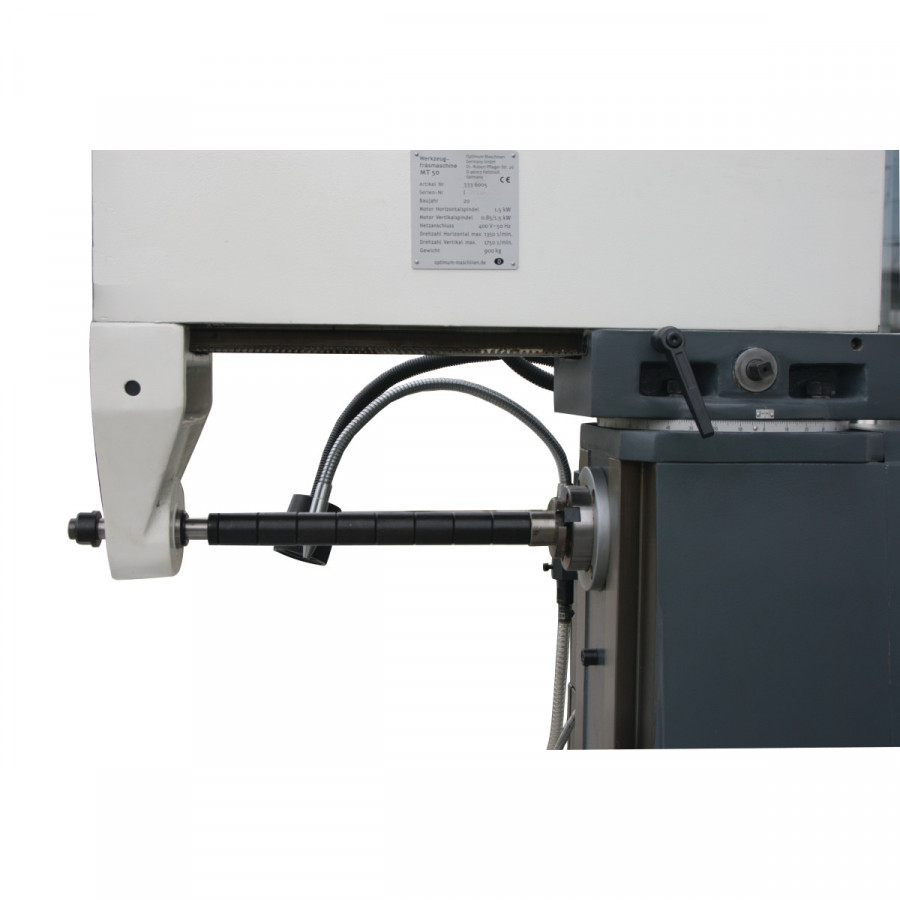

Horizontal spindle
Drive motor output 2,2 kW
Reach 35 – 370 mm
Spindle chuck ISO 40 DIN 2080
Speed range 40 – 1300 min¯¹
Number of gears 9
Milling table horizontal
Table length 1270 mm
Table width 280 mm
T-groove size 14 mm
T-groove number 4
Max. load bearing capacity 140 kg
Travel
X axis manual 750 mm
Y axis manual 230 mm
Z axis manual 350 mm
X axis automatic 680 mm

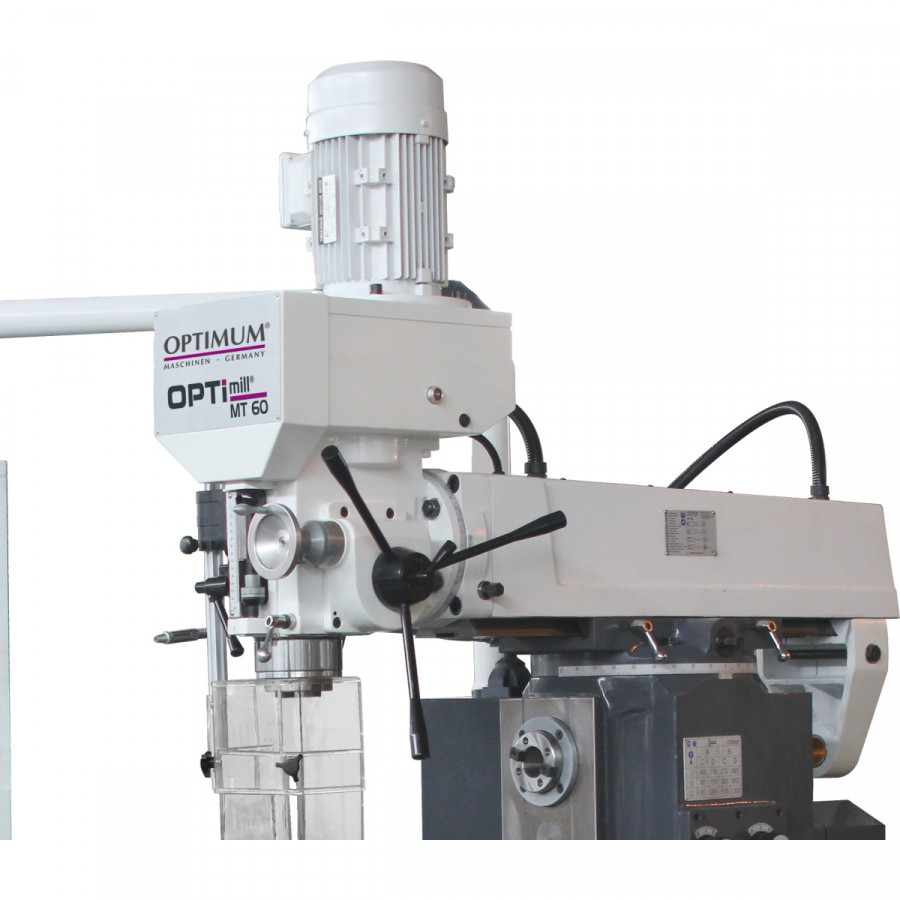

Vertical spindle
Reach 220 – 550 mm
Spindle chuck ISO 40 DIN 2080
Speed range 90 – 2000 min¯¹
Number of gears 8
Vertical spindle normal operation 2.2 kW
Quill stroke 120 mm
Max. size milling head 100 mm
Max. size shaft milling cutter 25 mm
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm
Electric Data
Supply voltage 400 V
Mains frequency 50 Hz
Electrical connections
Total rated value 5 kW
Horizontal spindle
Drive motor output 2,2 kW
Reach 35 – 370 mm
Spindle chuck ISO 40 DIN 2080
Speed range 40 – 1300 min¯¹
Number of gears 9
Milling table horizontal
Table length 1270 mm
Table width 280 mm
T-groove size 14 mm
T-groove number 4
Max. load bearing capacity 140 kg
Travel
X axis manual 750 mm
Y axis manual 230 mm
Z axis manual 350 mm
X axis automatic 680 mm
Vertical spindle
Reach 220 – 550 mm
Spindle chuck ISO 40 DIN 2080
Speed range 90 – 2000 min¯¹
Number of gears 8
Vertical spindle normal operation 2.2 kW
Quill stroke 120 mm
