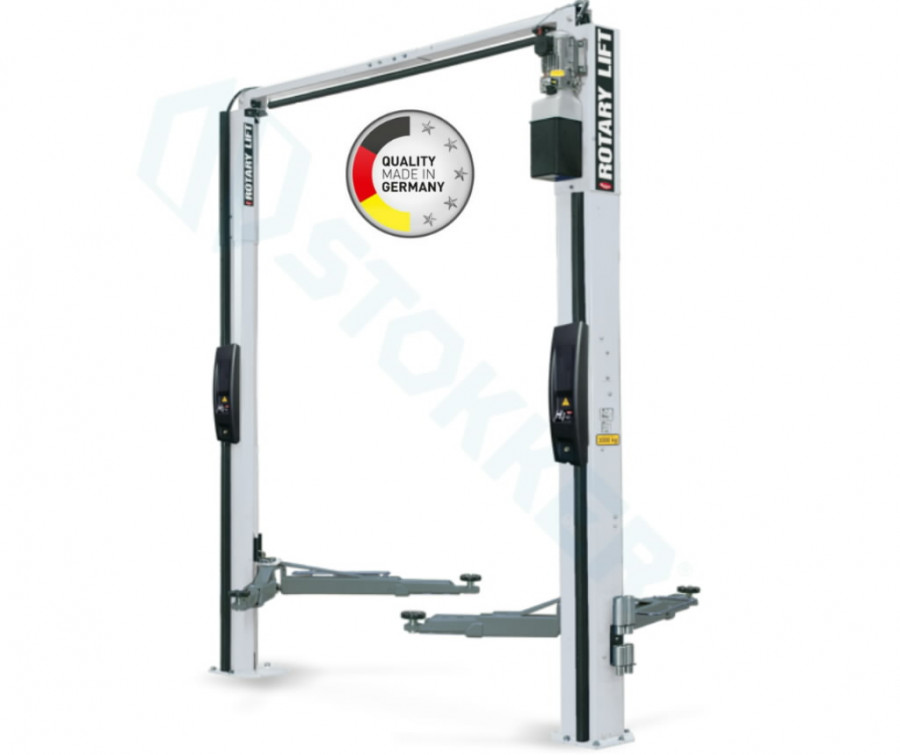

3.5 t, electrohydraulic, push-button operation, 3-sectional support arms in front, asymmetrical, total height 4170 mm
Technical specifications:
lifting force 3.5T
lifting height 1957mm
lifting time 30 sec
total height/maximum lifting height 4170/4065mm
lowest lifting height 94-153mm
long paw adjustment range 876-1472mm
short paw adjustment range 550-1106mm
distance between posts 2560mm
maximum passing width between posts 2336mm
total width 3121mm
motor 4kW
power supply 400V/50Hz
total height 4170mm
