Tilaustuote. Kysy toimitusaikaa
Power Input 2000 Watts
Power Output 1580 Watt
Blade Speed 3000 rpm
Blade Diameter 300 mm
Blade Bore 30 mm
Max. Cutting Speed 36 m/sec
Max. Ripping Width N/A mm
Max. Crosscut Capacity at 90° 507 mm
Max. Crosscut Capacity at 45° 342 mm
Max. Depth of Cut at 90? 90 mm
Max. Depth of Cut at 45? 60 mm
Weight 115 kg
Depth 1200 mm
Length 1490 mm
Height 1470 mm
Max. Depth of Cut [Saws] 90 mm
Max. Crosscut Capacity 507 mm
Sound Power 109.5 dB(A)
Sound Power Uncertainty 3.3 dB(A)
Sound Pressure 96.5 dB(A)
Sound Pressure Uncertainty 3.0 dB(A)
Hand/Arm Vibration 2.0 m/s2
Uncertainty K 1 (Vibration) 1.5 m/s²

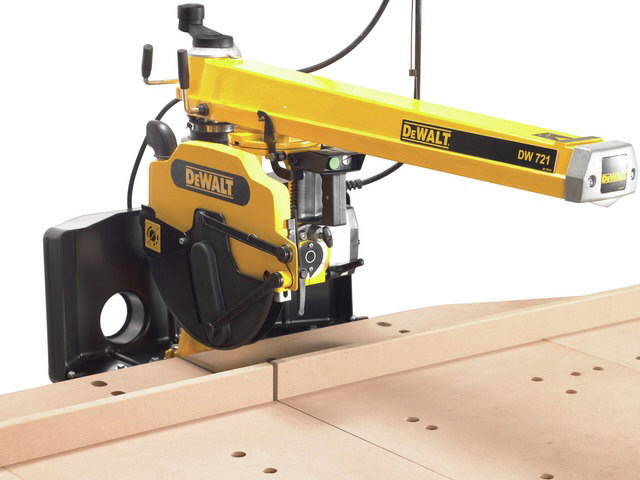

Free standing radial arm saw with 507mm of crosscut capacity and 90 mm depth of cut
Pre-assembled and adjusted, delivered in a wooden crate for maximum transportation protection
Strengthened column assembly and base arrangement supports the extra arm length
Solid cast Iron arm and four roller bearings in the motor head assembly ensure high accuracy and durability
Quiet maintenance free induction motor delivers high power even at the maximum cutting capacities of the machine. Also available in three phase voltage as a DW722KN
Simple yet positive controls and adjustment scales enable the width, depth and angle of cut to be set with accuracy in seconds
Standard equipment includes large Dust Shroud with 4" outlet
Power Output 1580 Watt
Blade Speed 3000 rpm
Blade Diameter 300 mm
Blade Bore 30 mm
Max. Cutting Speed 36 m/sec
Max. Ripping Width N/A mm
Max. Crosscut Capacity at 90° 507 mm
Max. Crosscut Capacity at 45° 342 mm
Max. Depth of Cut at 90? 90 mm
Max. Depth of Cut at 45? 60 mm
Weight 115 kg
Depth 1200 mm
Length 1490 mm
Height 1470 mm
Max. Depth of Cut [Saws] 90 mm
Max. Crosscut Capacity 507 mm
Sound Power 109.5 dB(A)
Sound Power Uncertainty 3.3 dB(A)
Sound Pressure 96.5 dB(A)
Sound Pressure Uncertainty 3.0 dB(A)
Hand/Arm Vibration 2.0 m/s2
Uncertainty K 1 (Vibration) 1.5 m/s²
Free standing radial arm saw with 507mm of crosscut capacity and 90 mm depth of cut
Pre-assembled and adjusted, delivered in a wooden crate for maximum transportation protection
Strengthened column assembly and base arrangement supports the extra arm length
Solid cast Iron arm and four roller bearings in the motor head assembly ensure high accuracy and durability
Quiet maintenance free induction motor delivers high power even at the maximum cutting capacities of the machine. Also available in three phase voltage as a DW722KN
Simple yet positive controls and adjustment scales enable the width, depth and angle of cut to be set with accuracy in seconds
Standard equipment includes large Dust Shroud with 4" outlet
