Tehtaan varastossa. Tilattaessa arvioitu toimitus 26.11.2025
Electrical connection 230 V / 1 Ph ~50 Hz
Motor power 750 W
Drilling capacity in steel (S235JR) 16 mm
Continuous drilling capacity in steel (S235JR) 12 mm
Throat depth 115 - 430 mm
Spindle stroke 80 mm
Spindle seat MT 2
Spindle speeds 390 - 3.000 min-1
Number of steps 5 Steps
Drilling table size length x width 262 x 262 mm
Slot size 14 mm

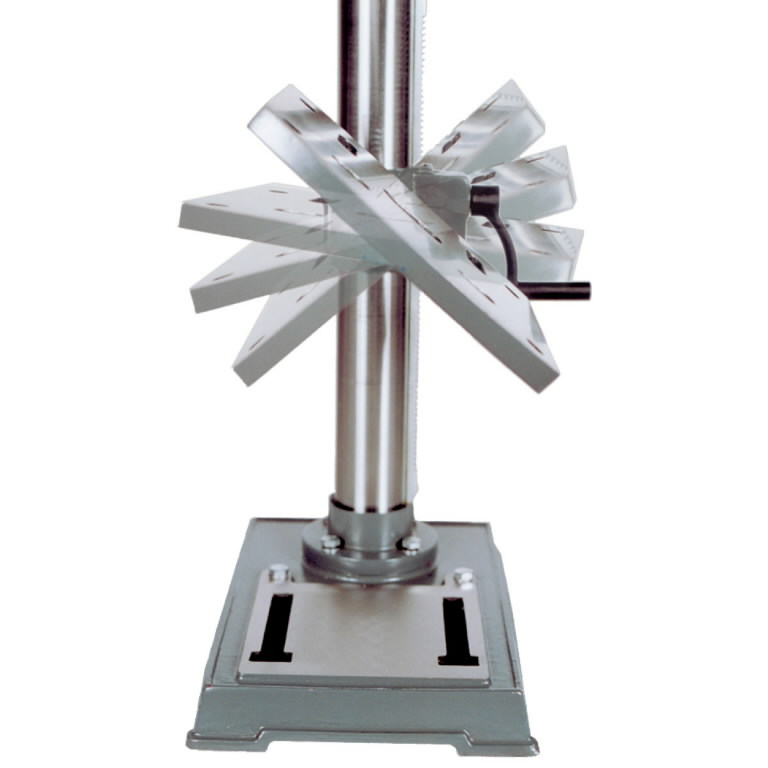

Inclinable drilling table +/- 45 degree
Distance spindle - table max. 740 mm
Distance spindle - stand max. 1250 mm
Stand work surface L x W 600 x 350 mm
Stand slot size 14 m
Column diameter 70 mm
Length x width x height 820 x 395 x 1640 mm
Total weight 60 kg
Motor power 750 W
Drilling capacity in steel (S235JR) 16 mm
Continuous drilling capacity in steel (S235JR) 12 mm
Throat depth 115 - 430 mm
Spindle stroke 80 mm
Spindle seat MT 2
Spindle speeds 390 - 3.000 min-1
Number of steps 5 Steps
Drilling table size length x width 262 x 262 mm
Slot size 14 mm
Inclinable drilling table +/- 45 degree
Distance spindle - table max. 740 mm
Distance spindle - stand max. 1250 mm
Stand work surface L x W 600 x 350 mm
Stand slot size 14 m
Column diameter 70 mm
Length x width x height 820 x 395 x 1640 mm
Total weight 60 kg
